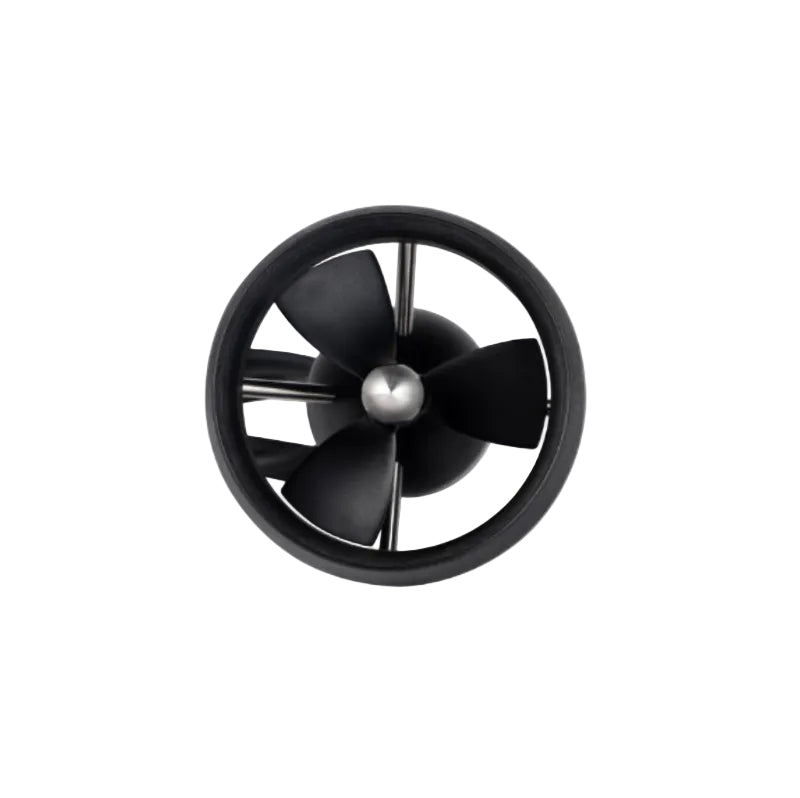

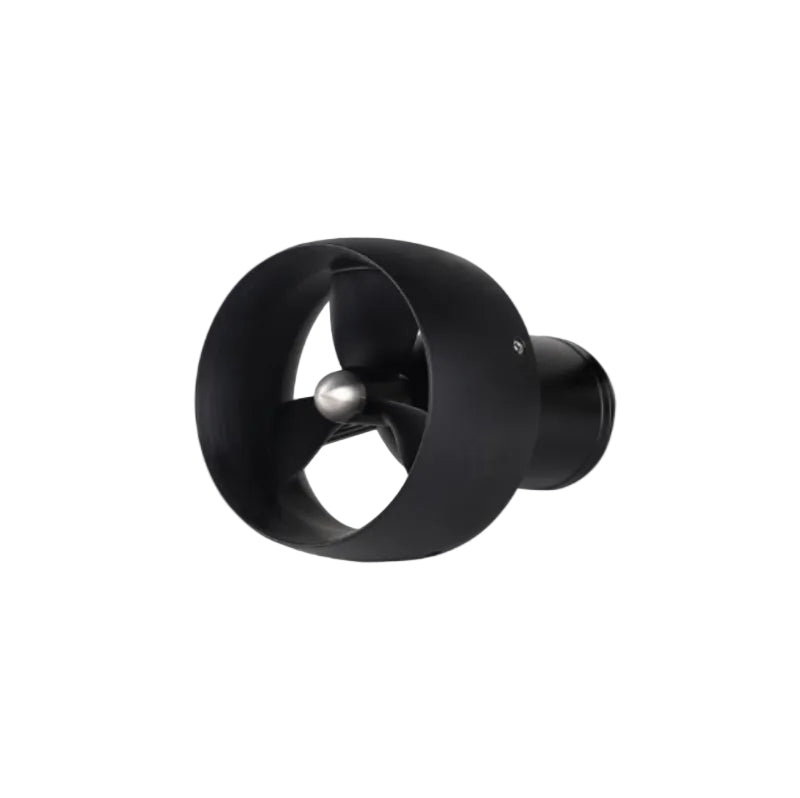

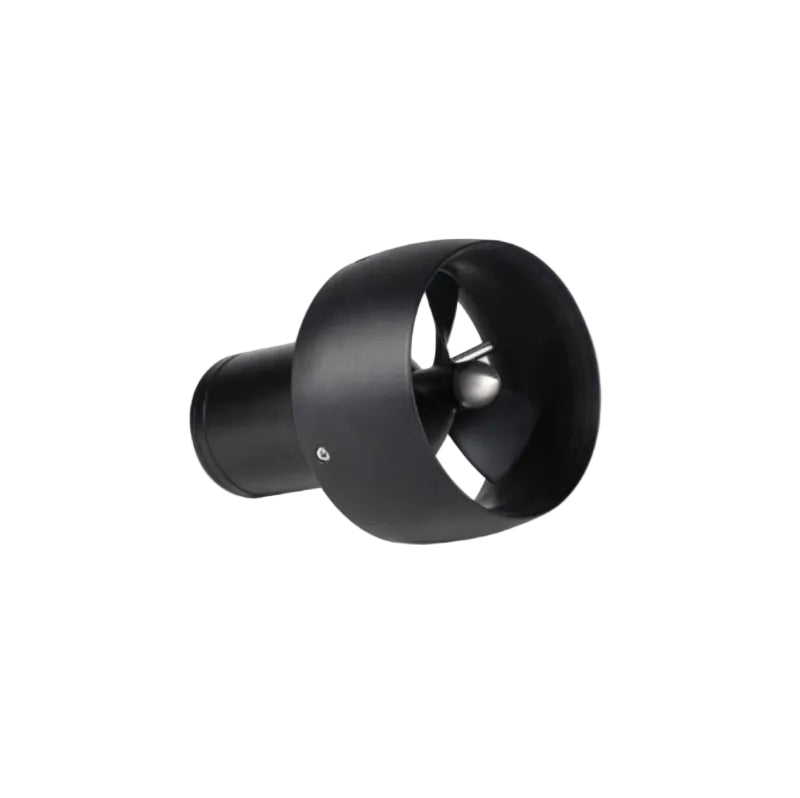

CubeMars DW10 Underwater Thruster

Product Description

The CubeMars DW10 underwater thruster is purpose-built for remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs). With a rated voltage of 36 V, continuous power output of approximately 540 W, and a nominal static thrust of ≥10 kgf, it is designed to operate reliably at depths down to 350 meters.

The thruster features a precision-cast aluminum alloy housing, a dual-chamber independent sealing system, and a low-friction dynamic shaft seal. Internally potted with high-thermal-conductivity material, it leverages direct water cooling for efficient thermal management. Weighing 840 g in air (~480 g in water), the DW10 delivers a robust balance of power, durability, and compactness for professional subsea missions.

Core Specifications

• Dimensions: Φ100 × 148 mm

• Weight (in air): 840 g

• Maximum Static Thrust: 10 kgf

• Continuous Rated Power: 540 W

• Operating Depth: 0–350 m

• Cable specification：TPU φ8mm- 3*16AWG- 1.5M


Product Highlights

• Deep-Dive Capability: Validated for operation down to 350 m—ideal for professional ROV/AUV missions in demanding underwater environments

• High Thrust Output: Delivers ≥10 kgf static thrust, meeting propulsion requirements of medium-class underwater platforms

• Robust & Durable Construction: Precision aluminum alloy housing combined with dual-seal chambers and low-drag dynamic shaft sealing effectively prevents ingress of sand, silt, and seawater

• Advanced Thermal Management: High-conductivity internal potting compound + ambient water cooling enables sustained operation under full load

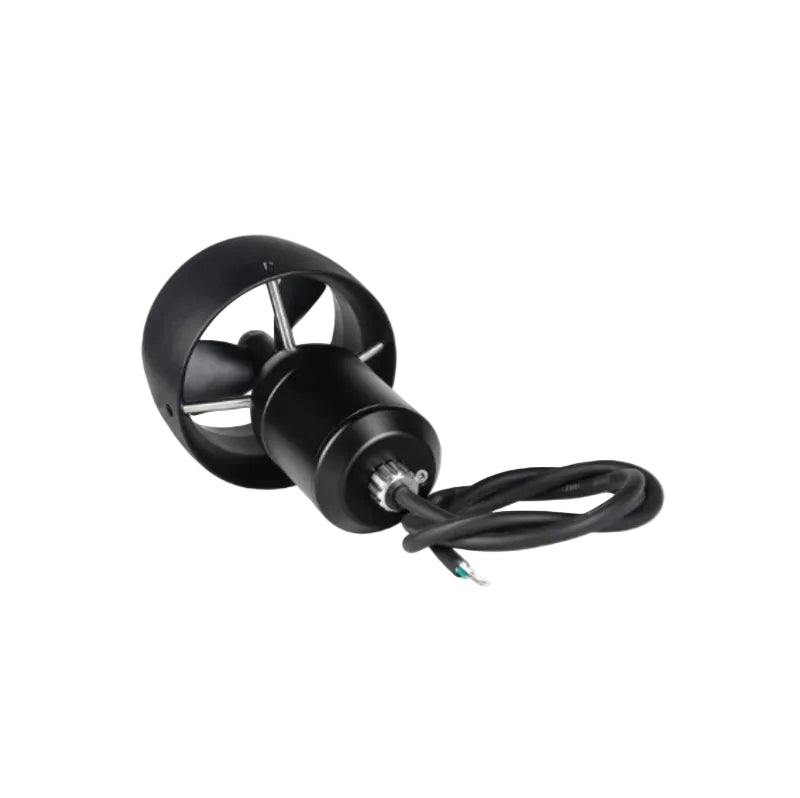

• Integration-Friendly Design: Equipped with a 1.5 m long TPU-jacketed cable (Φ8 mm, 3×16 AWG) for easy system integration and reliable underwater connectivity

Packaging Contents

• DW10 Underwater Thruster ×1

• Certificate of Conformance ×1
