CubeMars AK70-9 KV60 Motor
CubeMars AK70-9 KV60 Motor
Product Description

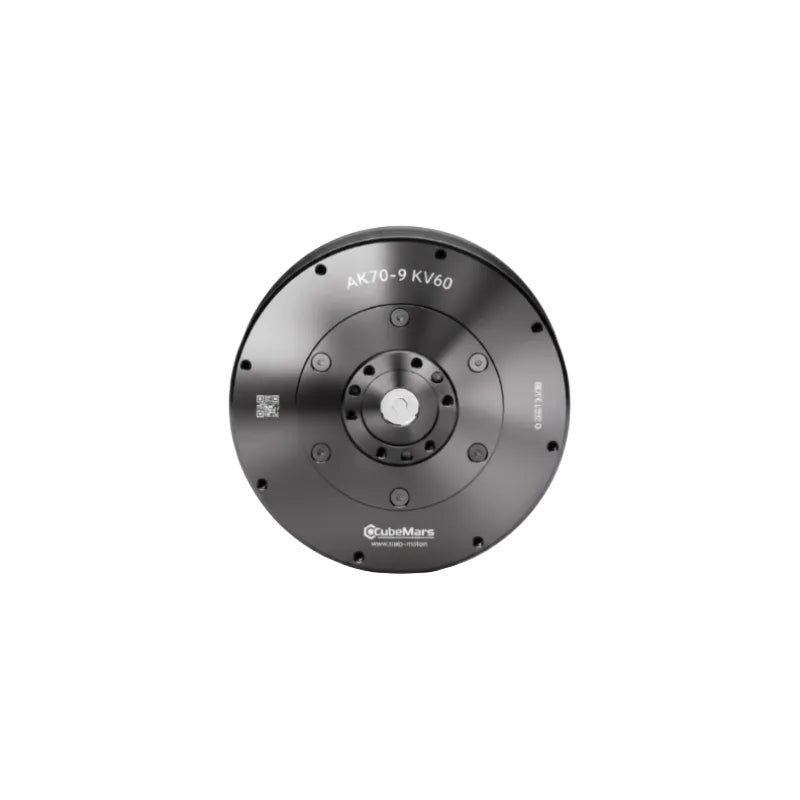

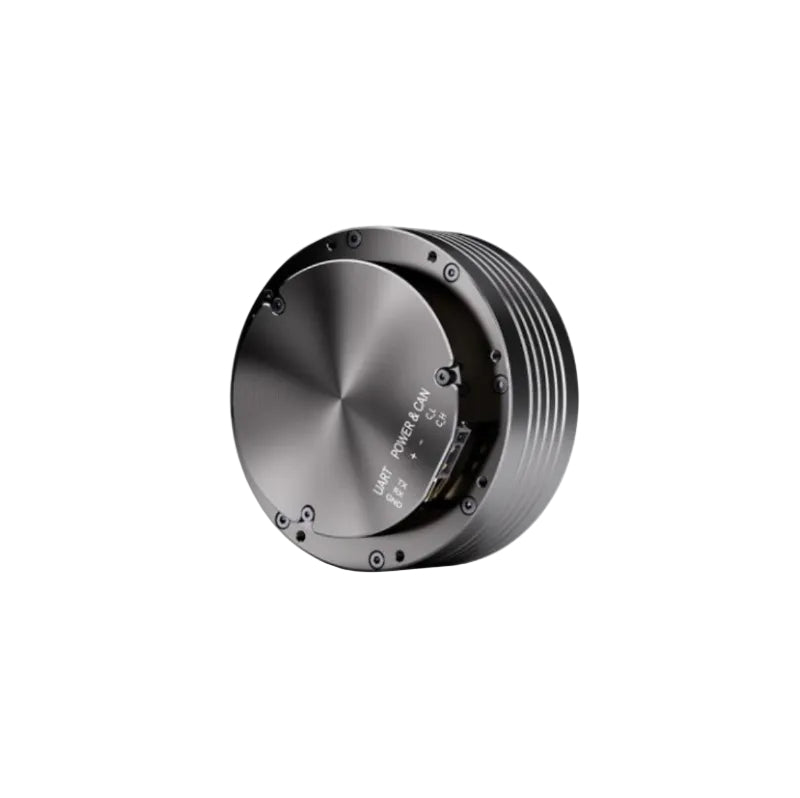

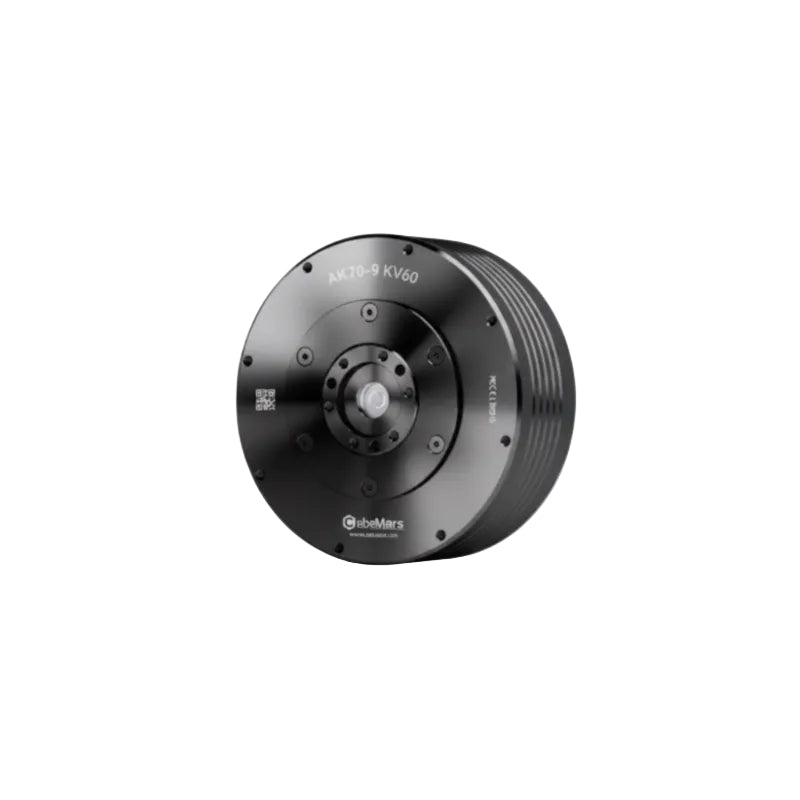

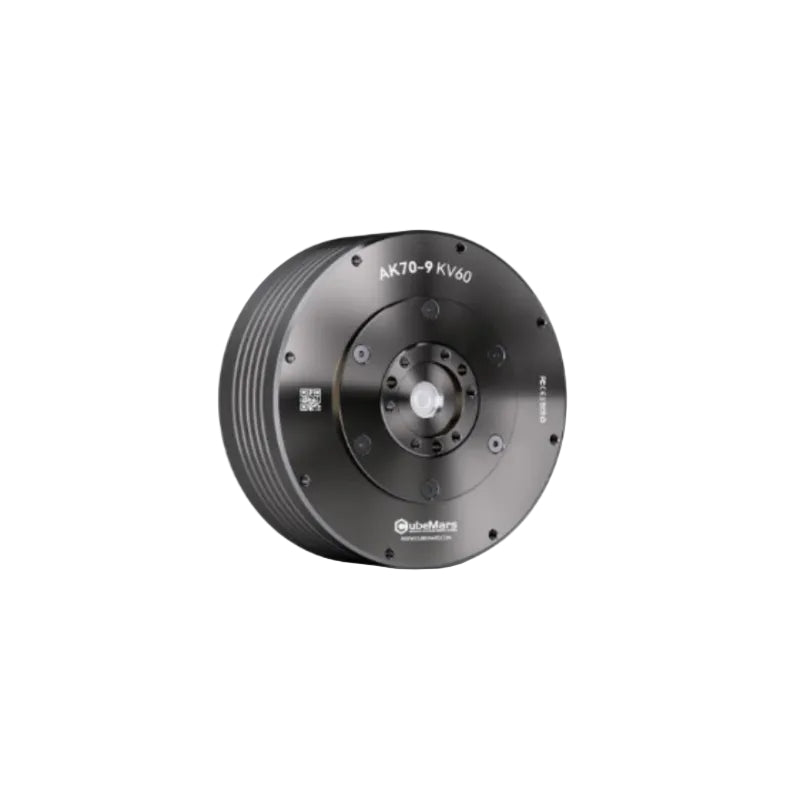

The CubeMars AK70-9 KV60 robotic actuator integrates a brushless DC motor, 9:1 planetary gearbox, and driver into a compact, easy-to-install unit. It delivers high torque output while maintaining responsive dynamics. The module supports multi-loop control (position, speed, torque, and MIT hybrid mode) with dual encoder feedback, and includes built-in protection against overcurrent, overvoltage/undervoltage, and overheating for stable operation in demanding applications.
Upper computer enables one-click parameter identification and seamless switching between servo and MIT modes, significantly simplifying commissioning. Real-time status monitoring ensures precise control and reliable communication in complex scenarios. Ideal for robotic joints and precision medical devices, this actuator also supports customization, providing a high-performance, dependable power solution for industrial automation and research applications.
Core Specifications
-
Motor Dimensions: Ф89*46mm
-
Motor Weight: 540g
-
Peak Torque: 29.2Nm
-
No-load Speed: 320rpm
Product Highlights
-
High Torque Density: Delivers 29.2Nm peak torque, capable of handling heavy-load tasks
-
Dual Encoder Design: Input and output side encoders enhance positioning accuracy and system reliability
-
Fully Integrated: All-in-one design combining motor, gearbox, and driver for simplified system integration
-
Multi-mode Control: Supports servo and MIT hybrid control with adaptive PID tuning
-
Robust Protection: Includes overcurrent, overvoltage/undervoltage, and overtemperature protection
-

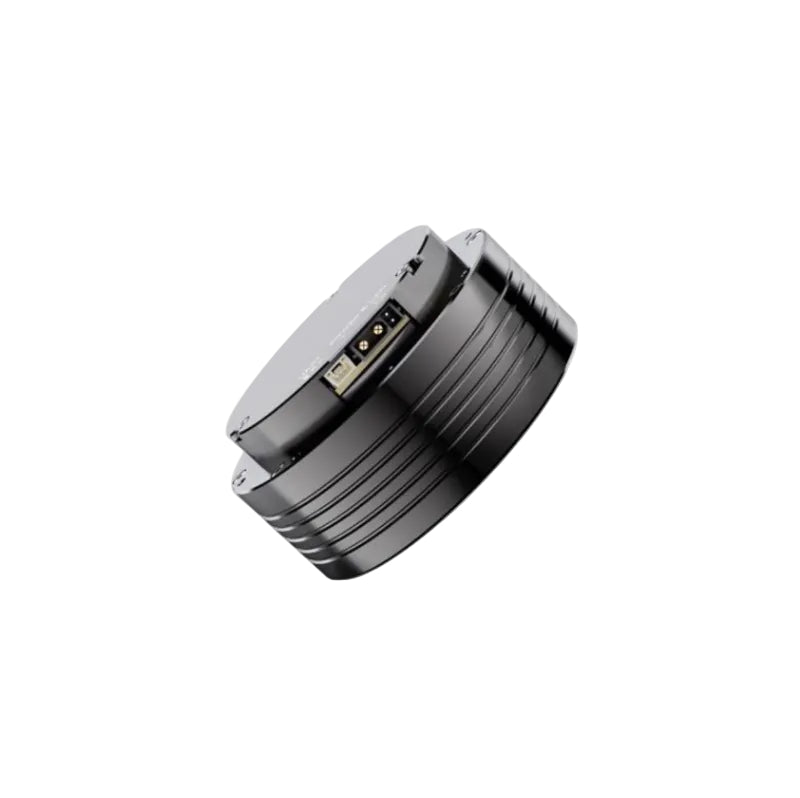

Optimized Connector: High-reliability plug-in connectors eliminate complex traditional wiring

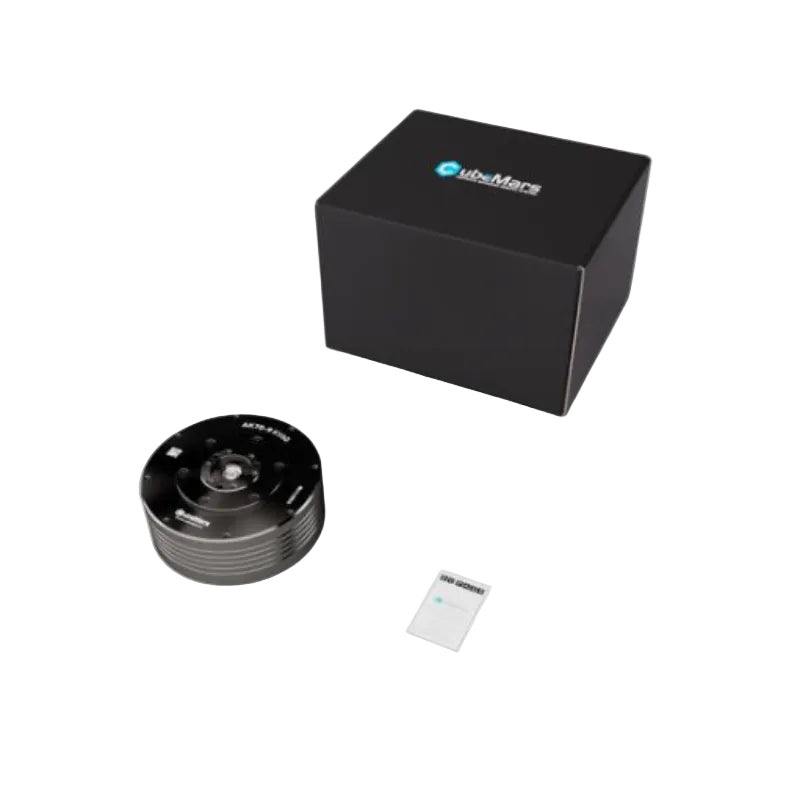

Packaging Contents
-
AK70-9 KV60 Actuator (Comes standard with a driver board)x1
-

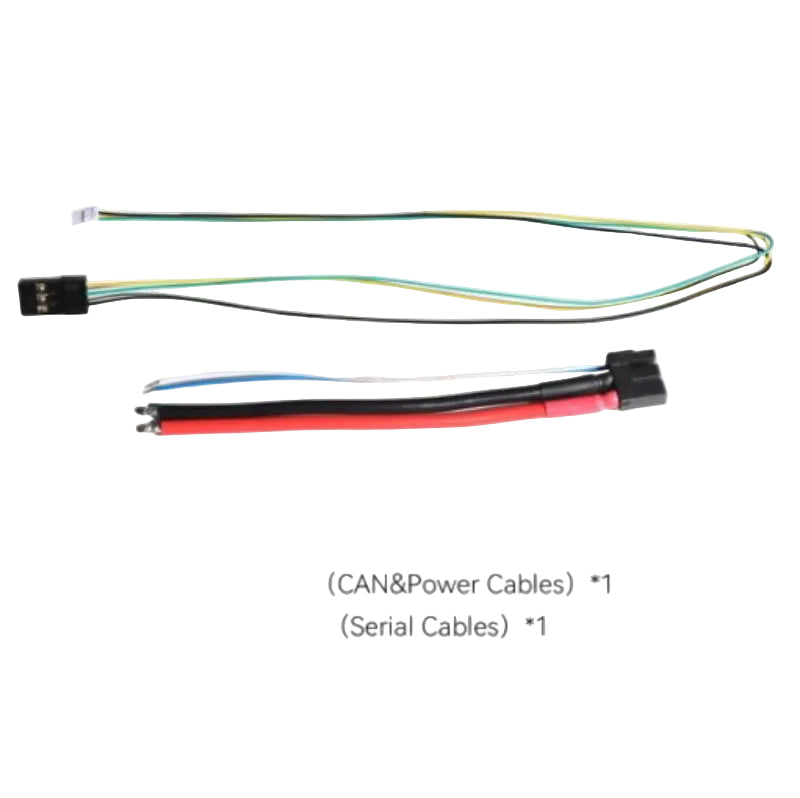

Power CAN Cable x1
-
Serial Cable x1
-
Certificate of Conformance x1
Related Accessories
-
R-link V3.0
-
Driver Board V3.0 Large Board
-
Wiring Package V3.0
| PRODUCT PARAMETERS | |||
| Characteristics Overview | |||
| Application | Legged Robot,Exoskeleton,AGV |
Peak torque (Nm) | 29.2 |
| Driving way | FOC | Peak current (ADC) | 23.8 |
| Operation ambient temperature | -20℃~50℃ | No-load speed (rpm) | 320 |
| Winding Type | Delta | KV (rpm/V) | 60 |
| Insulation Level | C | KT (Nm/A) | 0.159 |
| Insulation High-voltage | 1000V 5mA/2s | KE (V/krpm) | 16.7 |
| Insulation resistance | 1000V 10MΩ | Phase to phase resistance (mΩ) |
475 |
| Number of Slots | 36 | Phase to phase Inductance (μH) |
408 |
| Pole Pairs | 21 | Rotor Inertia (gcm²) | 866.3071 |
| Reduction Ratio | 9:1 | Motor constant(Nm/√W) | 0.23 |
| Back drive (Nm) | 0.8 | Mechanical Time Constant (ms) |
1.7 |
| Backlash (arcmin) | 18 | Maximum Torque Density(Nm/kg) |
54 |
| Temperature sensor | NTC MF51B 103F3950 | CAN connector | A1257WR-S-4P |
| Noise dB (65CM away the motor) |
50 | UART connector | A1257WR-S-3P |
| Basic dynamic load rating Cr(N) |
1890 | Power connector | XT30PW-M |
| Basic static load rating Cor(N) |
2140 | Inner loop encoder type | Magnetic |
| Rated voltage (V) | 48 | Inner ring encoder resolution |
14bit |
| Rated torque (Nm) | 8.5 | Outer ring encoder type | Magnetic |
| Rated speed (rpm) | 260 | Outer ring encoder resolution |
15bit |
| Rated current (ADC) | 6.25 | Number of encoder | 2 |
| Weight (g) | 540 | ||
